PRODUCT

TC-45 TC-45

SPECIFICATIONS

MODEL TC-45 TC-63
MAX CUTTING LENGTH 450 mm 630 mm
1 PC BOX SIZE (mm) 700×146×220 850×146×220
6 PCS BOX SIZE (mm) 715×460×460 865×460×460
NET WEIGHT (kg) 3.3×6=19.8 3.6×6=21.6
GROSS WEIGHT (kg) 24 26
Length of Aluminum Stick attached to Scale gauge 305 mm 94 mm
PER EXPORT BOX  6 PCS
SPARE BLADE ATTACHED 1 PC

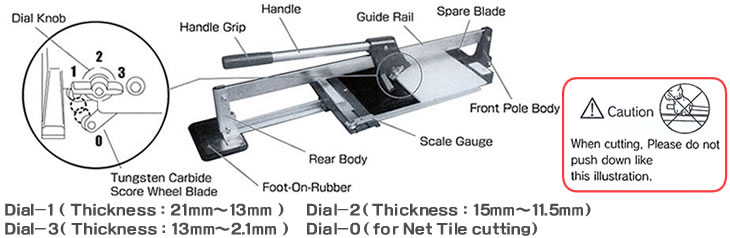

DIAL KNOB SETTING FOR TILE THICKNESS
DIAL KNOB SETTING FOR TILE THICKNESS

CLICK TO SEE MOVIES HOW TO CUT

TC-45 TC-63
STRAIGHT
CROSS
STRAIGHT
CROSS
STRAIGHT
TO MAX 630mm
